Shure Axient Wireless System Hire

Looking for Shure Axient wireless system hire that can handle a demanding RF environment without dropouts? Axient Digital pairs a high-performance digital receiver with a range of bodypack and handheld transmitters, giving productions wide tuning, low latency, and the channel density needed for anything from a corporate boardroom to a packed festival stage.

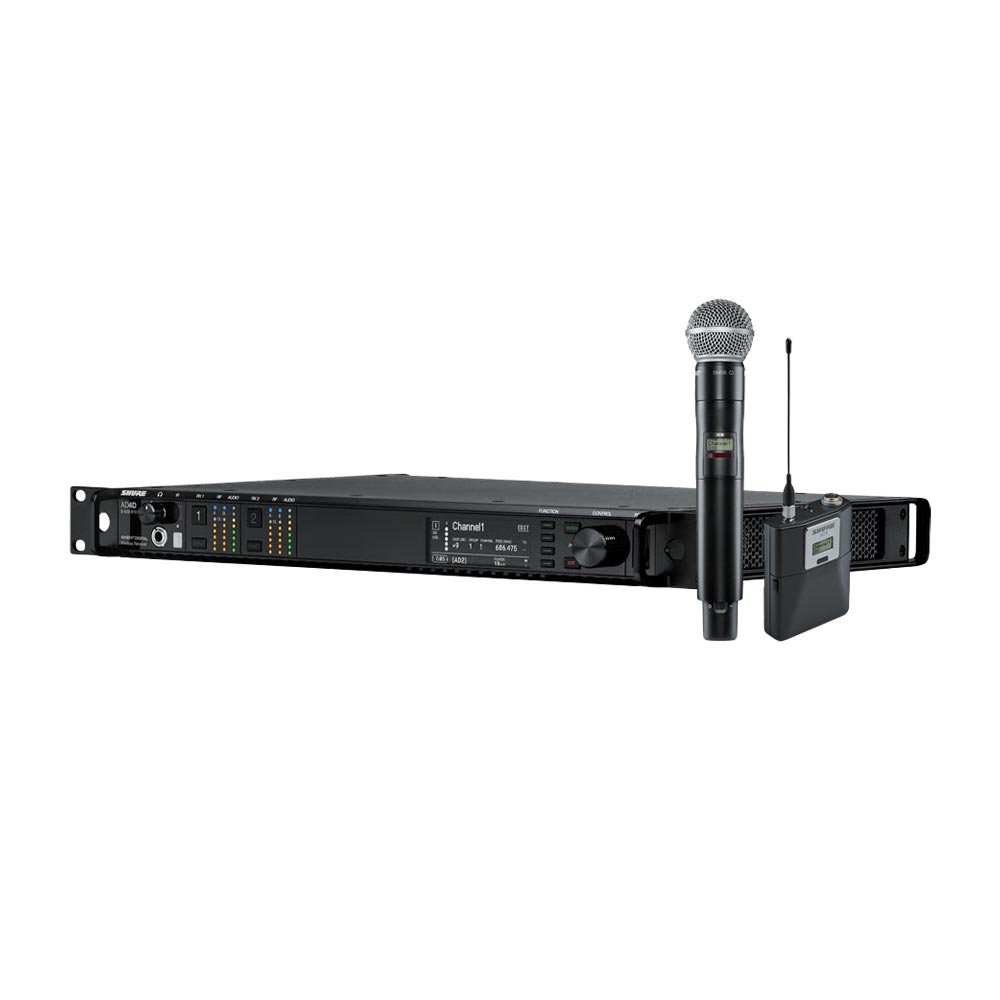

At the heart of the system is the AD4D two-channel digital receiver, offering wide tuning up to 184 MHz, true digital diversity reception per channel, and High Density mode to maximise channel count in congested RF environments. Networked control through Wireless Workbench software and the ShurePlus Channels iOS app lets an RF tech monitor and adjust the system remotely, and simultaneous AES3, AES67, and Dante output means it drops into almost any signal chain without extra conversion hardware.

Transmitters are matched to the brief. The AD1 bodypack suits lavalier and headset microphones with a choice of TA4 or LEMO3 connectors, while the AD2/SM58 handheld pairs the same Axient Digital performance with the SM58 cartridge most vocalists and presenters already know. Both transmitters share the receiver’s wide tuning, High Density mode, and encryption-enabled transmission, so a single Shure Axient Digital wireless system hire can mix bodypacks and handhelds on the same receiver without compromise.

Whether the job calls for two handhelds, a mix of lavaliers and handhelds, or a larger multi-channel deployment, we configure the system around your channel count and RF environment. As with any wireless system, frequency bands across transmitters and receivers need to match, so let us know your requirements and we’ll confirm compatible bands as part of your quote.

What’s Included

  • AD4D two-channel digital receiver
  • Choice of AD1 bodypack and/or AD2/SM58 handheld transmitters
  • Antennas, cabling, and rack hardware as required for your setup
  • Frequency coordination to match your venue’s RF environment

Why Hire the Axient AD4D Digital System

  • Wide tuning range up to 184 MHz across receiver and transmitters
  • True digital diversity reception per channel for drop-out resistance
  • High Density mode for maximum channel count in busy RF environments
  • Simultaneous AES3, AES67, and Dante output from the receiver
  • Networked control via Wireless Workbench and ShurePlus Channels app
  • Mix and match bodypack and handheld transmitters on the same system
  • Encryption-enabled transmission for secure, confidential events

Available Transmitters

  • AD1 Bodypack Transmitter – for lavalier and headset microphones, TA4 or LEMO3 connector
  • AD2/SM58 Handheld Transmitter – built around the SM58 cartridge

Receiver Specifications

Category Details
Product Page click here
Receiver AD4D two-channel digital receiver
Tuning Range Up to 184 MHz
Diversity True digital diversity reception per channel
Digital Outputs AES3, AES67, Dante (simultaneous)
Networked Control Wireless Workbench software, ShurePlus Channels iOS app
Monitoring Front panel headphone jack for Dante Cue/Browse
Ethernet Switch Configurable for redundant Dante or AES67 output
Metering Channel Quality meter (RF signal-to-noise)
Power Redundancy DC module version available
Compatible Transmitters All AD series and ADX series transmitters
